Protective cage

Mechanical protection for the device.

A 3D-printed, screw-fastened grille that protects the device from impacts and vandalism and prevents it from being removed without tools. Suits all Loopshore devices.


When it pays off

At sites where the device is exposed to knocks, vandalism or theft.

• a grille that protects against impacts and vandalism

• the device cannot be removed without tools

• suits all Loopshore devices

• a blank label for your own text

• 3D-printed

How the protective cage is installed

€30 Price, excl. VAT

Please note

The protective cage does not protect the device from rain. For outdoor installation the device must also be protected from rain and snow, see the device manual.

Weather shield

Protection for the device outdoors.

A 3D-printed shield that protects the measuring device from rain and snow when it is installed outdoors. Air flows in through the bottom of the shield and out through the slots in its sides, so the device measures the outdoor air. The solar panel on the front charges the device’s battery above freezing. Suits all Loop devices.


When it pays off

When the device is installed outdoors, where it is exposed to rain and snow.

• protects against rain and snow

• the air flows through the opening in the bottom and the slots in the sides

• the solar panel charges the device’s battery above freezing

• suits all Loop devices

• mounts on a wall or a pole (Ø 35 mm), locked with two screws

• in the box: the wall plate, wall screws and plugs, the pole bracket with its fasteners and two locking screws

• width 110 mm, depth 88 mm with the wall bracket (94 mm with the pole bracket), height 198 mm

• 3D-printed

• the measuring device is not included

Brackets

Wall plate and screws
Wall plate and screws
Pole bracket (Ø 35 mm)
Pole bracket (Ø 35 mm)
Locked with two screws
Locked with two screws

Installing on a wall

Installing on the stand

Please note

The device itself works in freezing temperatures, but some of its measurements are limited to the operating ranges stated by the sensor manufacturers. The battery does not charge below 0 °C, not even from the solar panel. The limits are in the device manual.

€89 Price, excl. VAT. Includes the solar panel, the wall bracket and the pole bracket; the measuring device is not included.

Crack gauge

Mechanical monitoring of cracks and movement.

A mechanical gauge for monitoring a crack and the movement across it: a scale and a sighting sleeve, and the installation point is marked with a marker pen.

1 mm One line on the scale is one millimetre, so the movement between inspections is easy to read.

No power No connections either: the gauge is read by eye.

2 ways to install Flat on a wall or a floor, and in the corner where they meet.


Flat model

For a wall or a floor: two brackets across the crack, with the scale strip and the sighting sleeve between them.

Corner model

For the joint between a wall and a floor: one bracket on the wall and the other on the floor, and the gauge shows the movement of the joint.

How the flat model is installed and read

How the corner model is installed and read


Typical uses

• Long-term monitoring of the joint between a wall and a floor

• Monitoring cracks in a floor

The same gauge suits both: the difference is one adapter part, which is delivered with the order.

€50 Price, excl. VAT

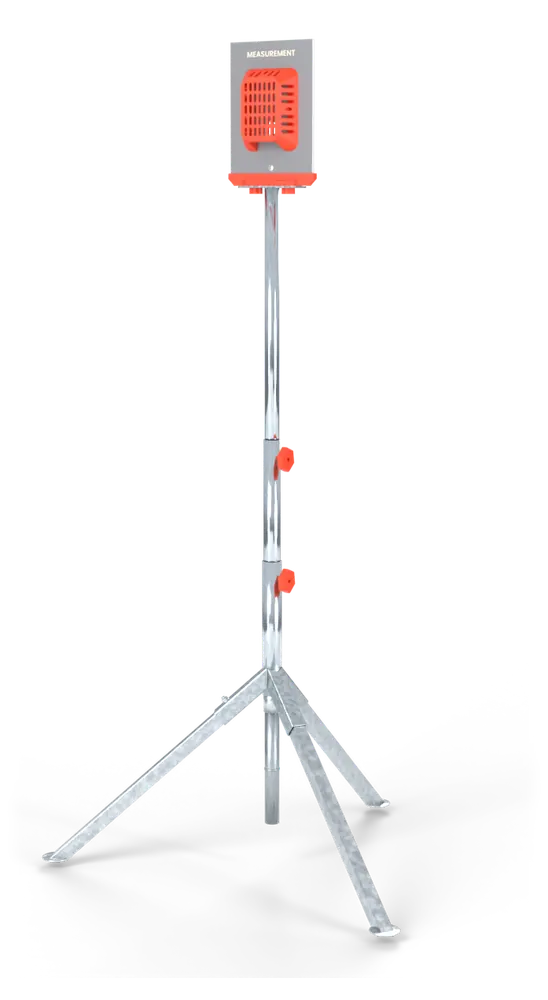

Sensor stand

A measuring device on a free-standing tripod.

An adjustable-height tripod stand that raises the measuring device to the occupied zone or head level (for example 170 cm) with no fixings to the structure. The device goes in a protective cage that attaches to the board with magnets.


Where it fits

For measuring in the occupied zone when the device cannot, or should not, be fixed to the structure.

• an adjustable tripod: the device can be raised to the occupied zone or head level

• the board, protective cage, bracket and clamping knobs are included in the price

• the protective cage attaches to the board with magnets

• the board carries the text “MEASUREMENT”

• 3D-printed parts

• the measuring device is not included in the price

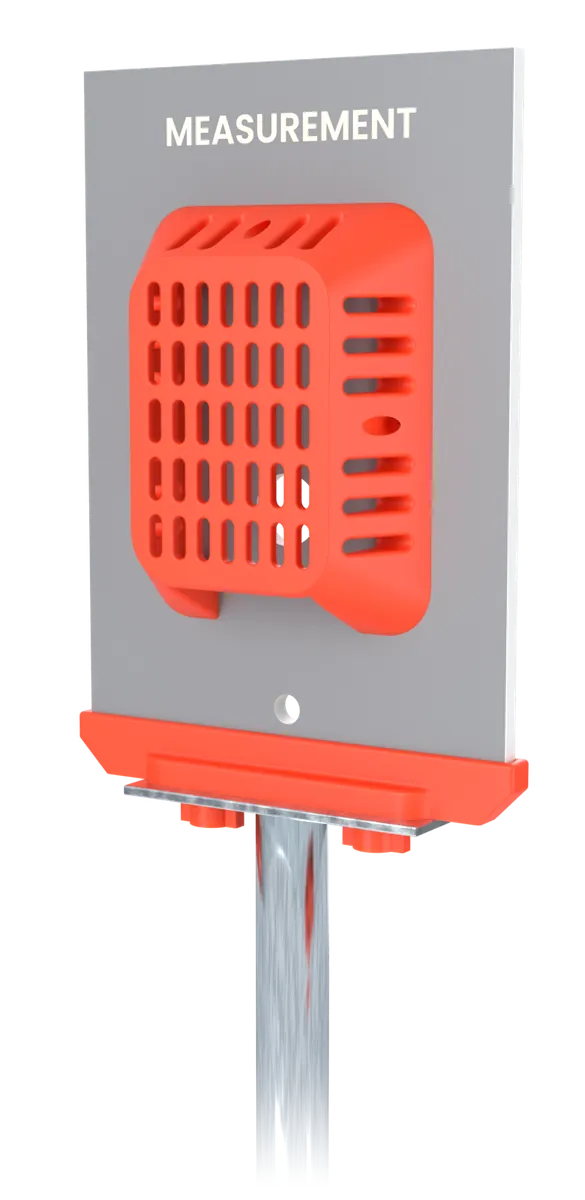

The board, the protective cage and the bracket up close

In the pictures the protective cage is without a measuring device.

€159.90 Price, excl. VAT. Includes the tripod, the board and the protective cage; the measuring device is not included.

A coil of PVC tube.

PVC tube 4/7 mm

Loop Delta’s pressure difference through a hole drilled in the frame.

An unreinforced PVC tube, inner diameter 4 mm and outer diameter 7 mm. The tube is taken to the outdoor air through a hole drilled in the frame, which is the primary way to install the pressure difference measurement. Drilling and sealing the frame takes less than 5 minutes.

Installation guide for the pressure difference meter

4/7 mm Inner diameter 4 mm, outer diameter 7 mm.

50 m One coil is enough for several installations.

€50 Price, excl. VAT. A 50-metre coil.

Illustration: Loop Delta indoors beside a window, its tube running to the adapter and the connection tube, and the copper tube passing between the seals of the frame and the sashes to the outdoor air.

Copper tube and adapter

Loop Delta’s pressure difference through a window seal.

A thin copper tube takes Loop Delta’s pressure difference measurement to the outdoor air between the seals of a window or a door, so there is no need to drill the frame. The tube is flexible and fits between the seals without being crushed. It comes with a connection tube and an adapter that join Delta’s own tube to the copper tube.


400 mm The length of the copper tube, inner diameter 0.8 mm. The device’s compensation is calculated for these dimensions.

2 m of tube Comes with Loop Delta, so there is no need to order tube separately.

Alternatively: the end of the tube between the windows

The end of the tube can also be left between the windows, where it is sheltered from rain.

Close-up: the end of the copper tube ends between the window sashes, on top of the frame.

Please note

The copper tube slightly reduces the measurement accuracy compared to a tube taken through a hole drilled in the frame. That is why we primarily recommend the tube installation. When you use the copper tube, uncheck “Pressure diff free flow” in the Loopshore service.

Installation guide for the pressure difference meter

€25 Price, excl. VAT. Includes the copper tube, the connection tube and the adapter.

Tell us about your site and we will help you choose

Get in touch and we will tell you about the accessories and delivery.

Prices exclude VAT. Delivery fee €15 per order.
